Tail Lift Equal to Hiab quality
A tail lift is a fantastic mechanical device designed to facilitate the material handling of goods from ground level to the level of the truck bed. It makes the loading and unloading work from truck bed to ground or from ground to the truck bed is so easy.
Tail lift is a kind of hydraulic lifting and handling equipment, which is installed at the rear of vehicle and powered by on-board battery. It has been popular in developed countries in Europe and the United States for 30 to 40 years. In the 1990s, it was introduced into mainland China through Hong Kong and Macao and quickly accepted by customers. When loading and unloading goods, the van with tail lift is not limited by the site, equipment and manpower. Even if only one person can complete the loading and unloading of goods. The tail lift loading and unloading is fast, safe and efficient, which can greatly improve the transportation loading and unloading efficiency. It is a necessary equipment for modern logistics transportation. It is widely used in logistics, finance, petrochemical, tobacco, commerce, manufacturing and other industries.
The taillift has the characteristics of fast, safe and efficient, which can greatly improve the transportation loading and unloading efficiency. It is one of the necessary equipment for modern logistics transportation. Widely used in logistics, post, tobacco, petrochemical, commerce, finance, manufacturing and other industries
The tail lift also can be tailor made according to client`s specification and application situations. If you have any specially requirement please let us know we will try our best to figure out the solution for you.
SPECIFICATION
| Model | SSI-2500 |
| Lifting capacity | 2500 kg |
| Lifting gear hydraulic | 2 lifting cylinder/2 tilting cylinder |
| Main beam | 180mm*180mm |
| Lifting arm pitch | 1310mm |
| Load center, longitudinal | 700mm |
| Load center, across centre | central, 50% rated load on one side |
| Platform overlap with floor | -57mm |
| Inclination angle of the platform | +90°~-10° |
| Power source | DC 12V or 24V
|
General drawing

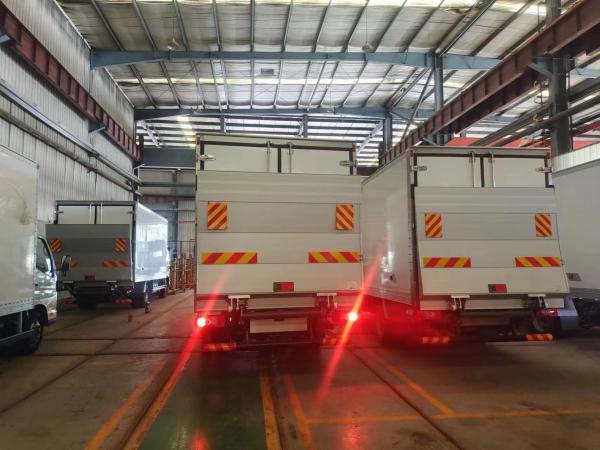

Demonstration pictures
